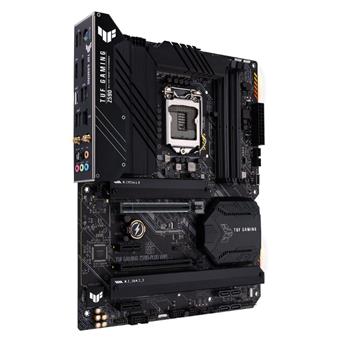

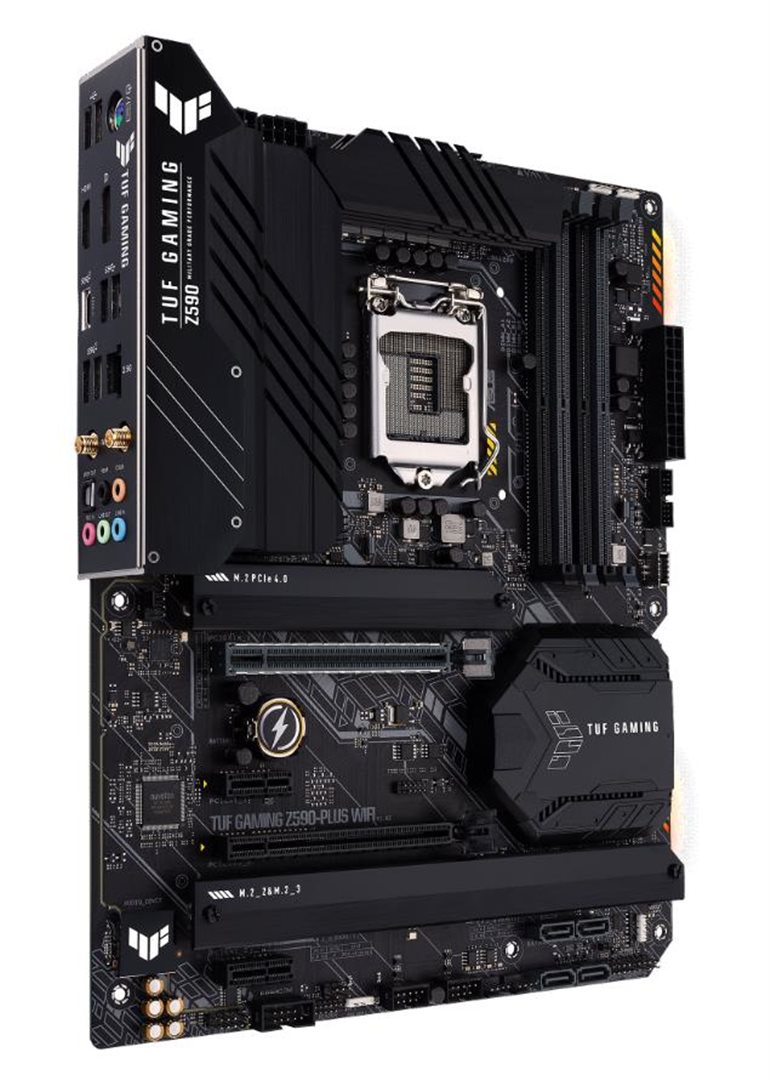

ASUS TUF GAMING Z590-PLUS WIFI

Chipset: Intel® Z590 Chipset

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru: LGA 1200

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4

• Dual Channel Memory Architecture
• Intel® Extreme Memory Profile (XMP)
• OptiMem II

Grafická karta:

• Integrated Graphics Processor (na základě procesoru)

Zvuková karta:

• Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

• 1x Intel® I225-V 2.5Gb Ethernet
• Intel® Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax)
• Bluetooth 5.0

Rozšiřující sloty:

• 1x PCIe 4.0/3.0 x16 slot
• 1x PCIe 3.0 x16 slot (supports x4 mode)
• 2x PCIe 3.0 x1 slots

SATA:

• 6x SATA 6Gb/s ports

M.2:

• M.2_1 slot (Key M), type 2242/2260/2280/22110
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

USB:

• zadní USB porty ( celkem 7 )
• 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2x USB 3.2 Gen 2 ports (2 x Type-A)
• 2x USB 3.2 Gen 1 ports (2 x Type-A)
• 2x USB 2.0 ports (2 x Type-A)
• přední USB porty ( celkem 7 )
• 1x USB 3.2 Gen 1 connector (suppports USB Type-C®)
• 2x USB 3.2 Gen 1 ports
• 4x USB 2.0 ports

Interní porty:

• 1x 4-pin CPU Fan header
• 1x 4-pin CPU OPT Fan header
• 1x 4-pin AIO Pump header
• 3x 4-pin Chassis Fan headers
• 1x 24-pin Main Power connector
• 1x 8-pin +12V Power connector
• 1x 4-pin +12V Power connector
• 3x M.2 slots (Key M)
• 6x SATA 6Gb/s ports
• 1x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
• 2x USB 2.0 headers support additional 4 USB 2.0 ports
• 2x AURA Addressable Gen 2 headers
• 2x AURA RGB headers
• 1x Clear CMOS header
• 1x COM Port header
• 1x Front Panel Audio header (AAFP)
• 1x 20-3 pin System Panel header with Chassis intrude function
• 1x Thunderbolt™ header

Externí porty:

• 1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2x USB 3.2 Gen 2 ports (2 x Type-A)
• 2x USB 3.2 Gen 1 ports (2 x Type-A)
• 2x USB 2.0 ports (2 x Type-A)
• 1x DisplayPort
• 1x HDMI™ port
• 1x ASUS Wi-Fi Module
• 1x Intel® I225-V 2.5Gb Ethernet port
• 5x Audio jacks
• 1x Optical S/PDIF out port
• 1x PS/2 Keyboard/Mouse combo port

Obsah balení:

• 2x SATA 6Gb/s cables
• 1x ASUS Wi-Fi moving antenna
• 2x M.2 Rubber Packages
• 1x M.2 SSD screw package
• 1x TUF Gaming sticker
• 1x Support DVD
• 1x TUF Certification card
• 1x User manual

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
